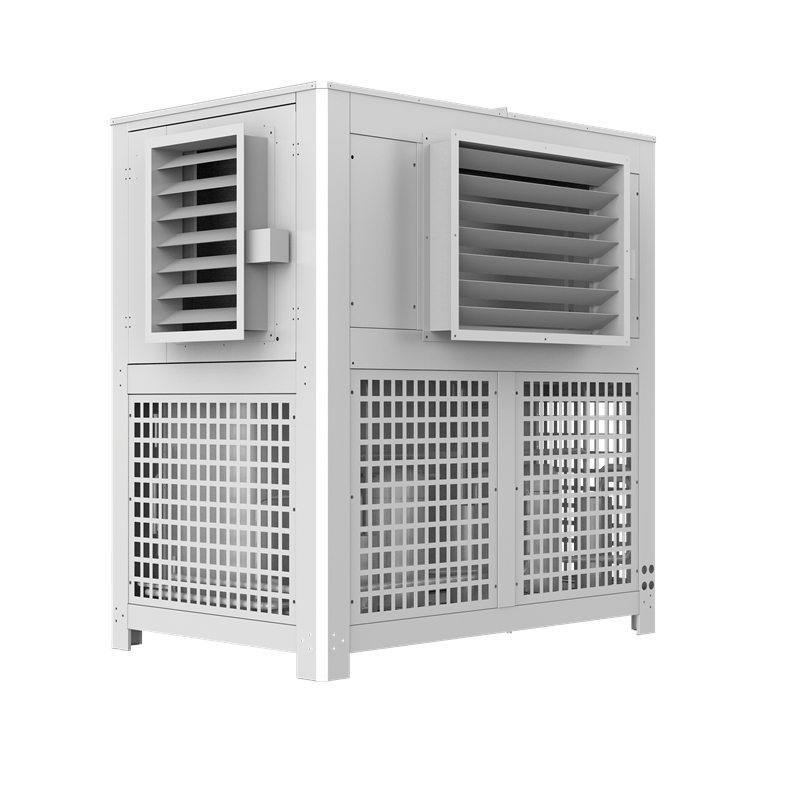

All in one climate unit

All in one mushroom climate unit

Used for all kinds of mushroom growing: white button,oyster,King oyster,Lion’s mane,shiitake ect mushroom.

Functions: Auto control room temperature,humidity,co2 and light.

Each unit comes with parts as below:
2pcs compost temperature probes
1pc dry&wet bulb probe (1pc dry temperature and 1pc wet temperature prob) for air temperature and humidity
1pc CO2 testing box with a CO2 probe in it for measuring CO2 level
1pc evaporating temperature probe
1pc ambient temperature probe
1set indoor air ducts each room
1set outdoor air ducts
1set overpressure louvers
1pc PLC control box
1set humidifier
1set electrical cables
1set insulation materials for outdoor air ducts
1set glue and nails
(not including power supply electrical cables and water pipes for humidifier)

Technical parameters

Model	QSB08FPC	QSB15FPC	QSB30FPC	QSB36FPC	QSB45FPC	QSB59FPC	QSB72FPC	QSB90FPC
Cooling Capacity:	8KW	13KW	28KW	34KW	45KW	58.8KW	72KW	90KW
Room temperature	15℃~20℃
Input power	3.51KW	5.27KW	10.88KW	13.31KW	16.21KW	22.99KW	25.44KW	32.42KW
Air Volume	1800m3/h	3000m3/h	6000m3/h	7000m3/h	10000m3/h	12000m3/h	15000m3/h	18000m3/h
Refrigerant: R410A（or R134A)
Based on Ambient temperature:35℃
Air cooled type unit

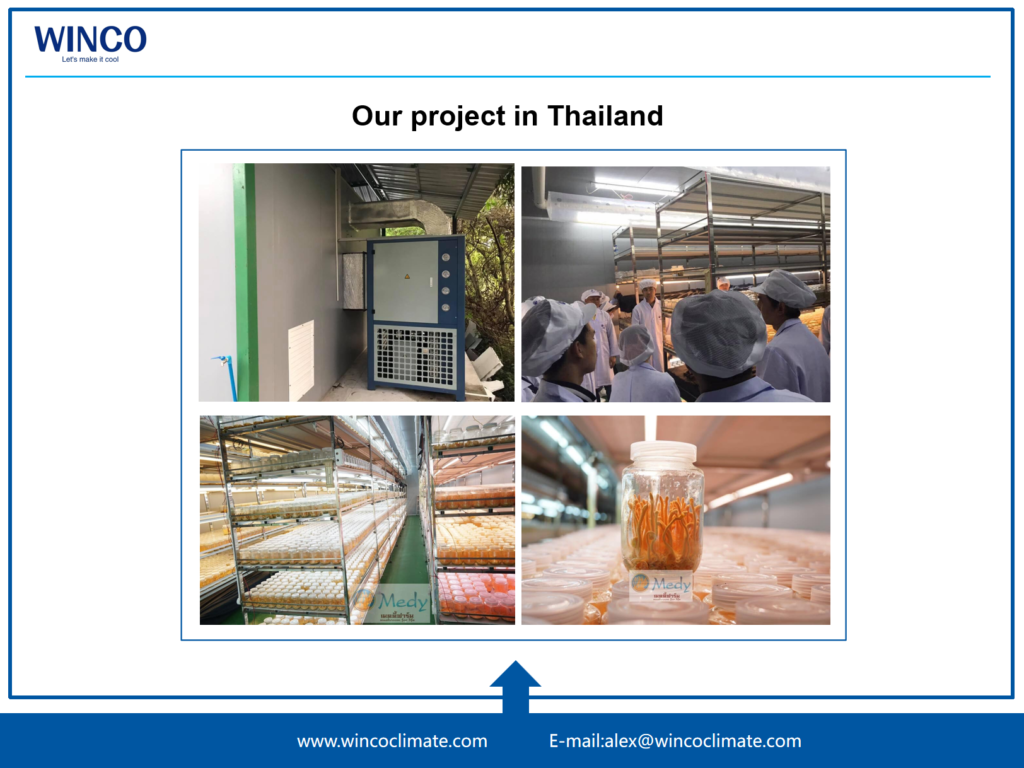

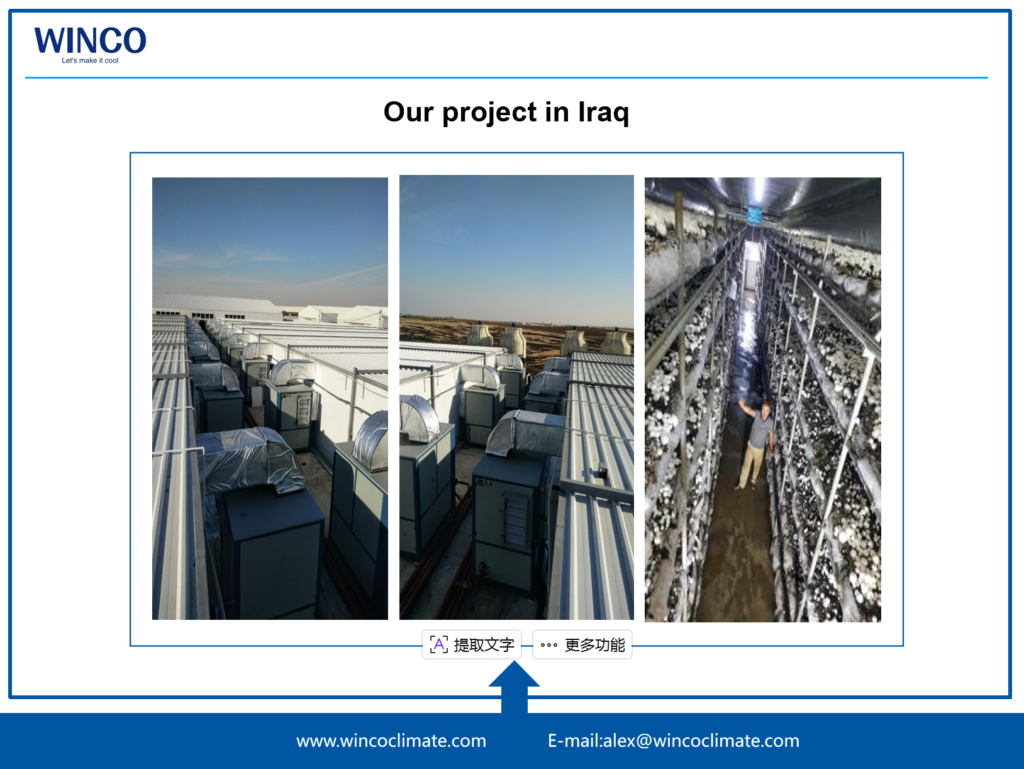

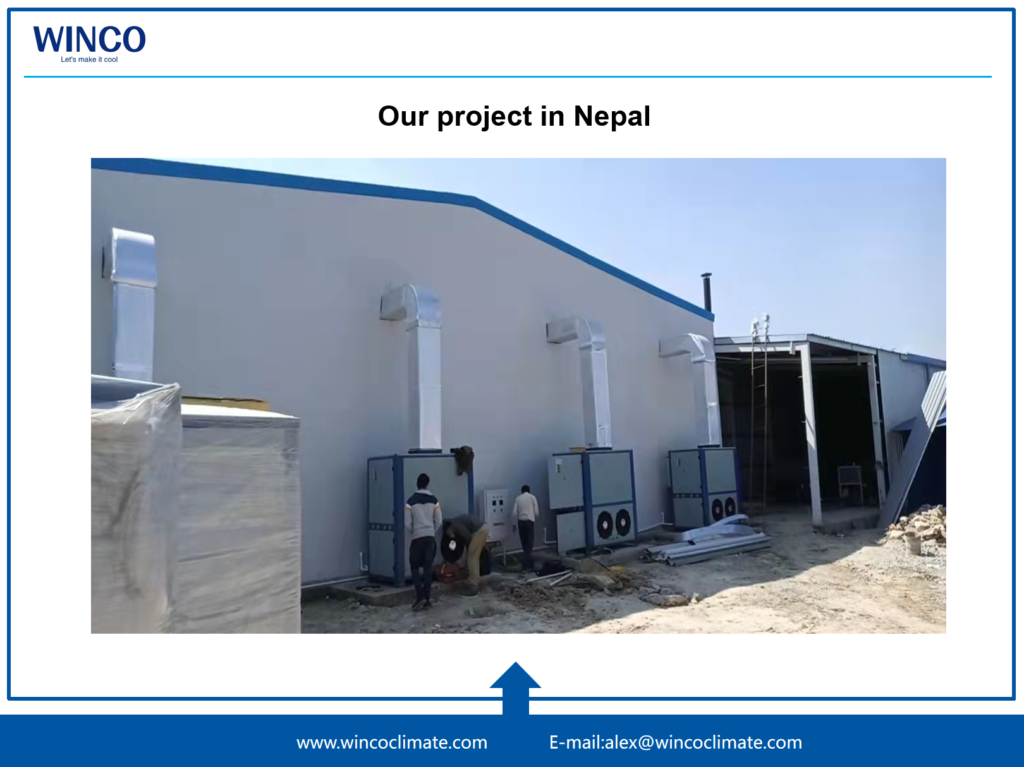

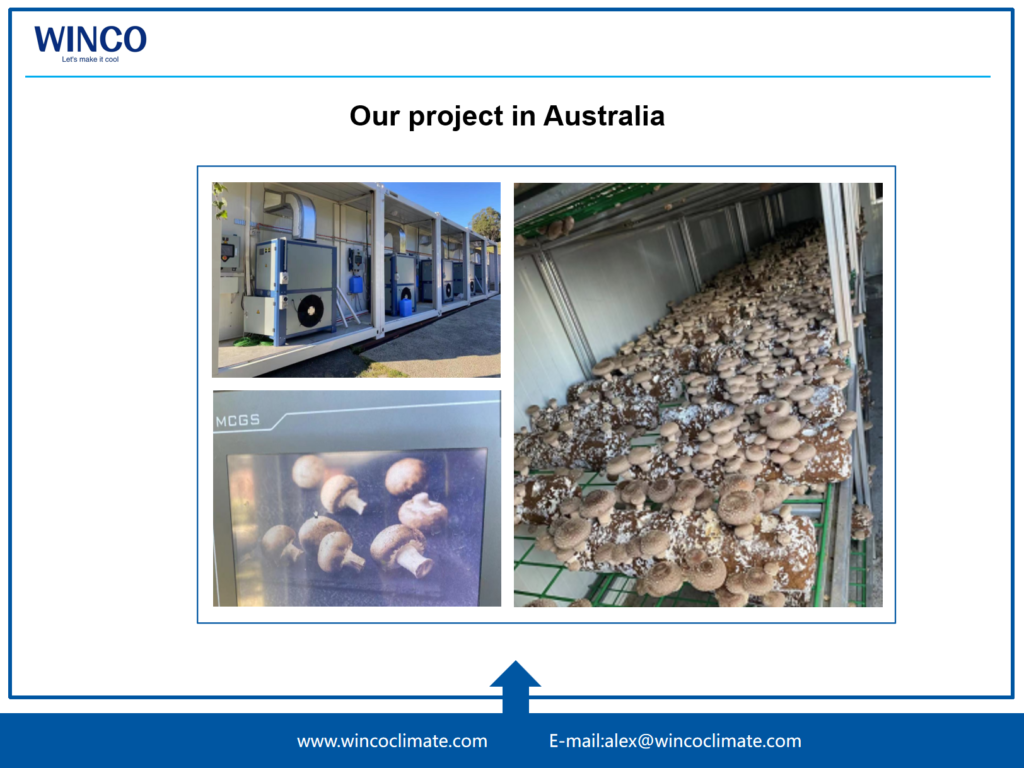

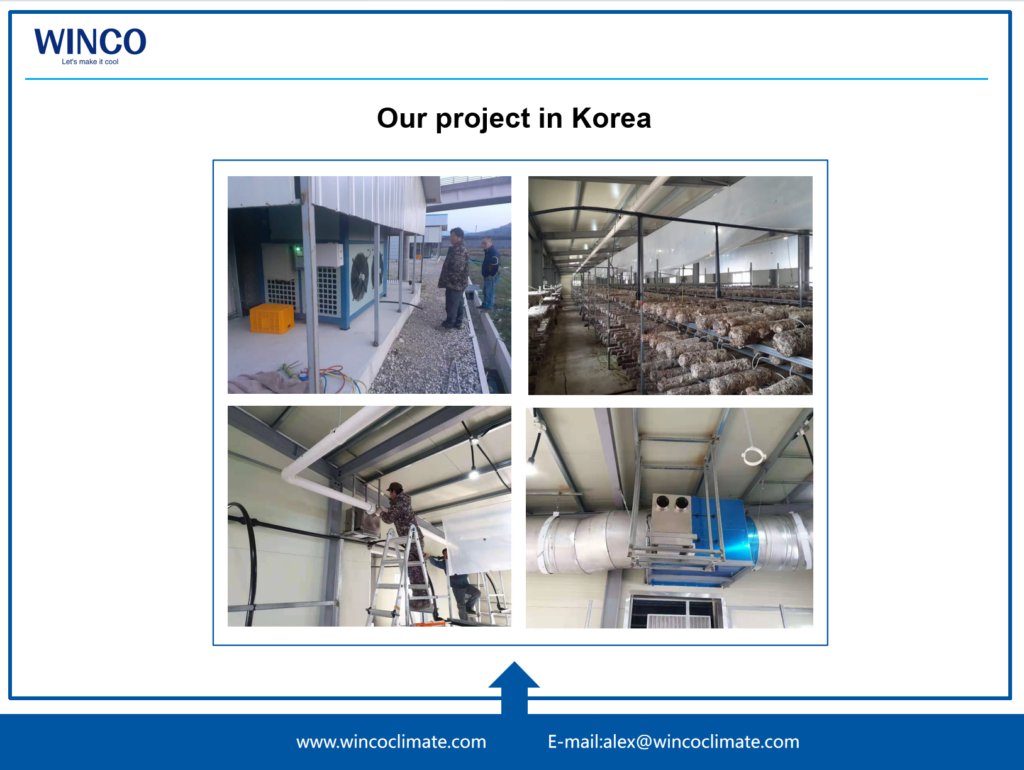

Some of Our Mushroom Projects:

If you plan to set up an indoor farming project,please contact with us for details！



       FAQ

1. What kind of Plant do you plan to grow?
2. What is the size of your grow rooms?
3. How many rooms do you plan to build?
4. For mushroom growing,how many tons of compost or subsrates put in each grow room?
5. For cannbis,vegetables and fruits cultivation,how many kw of Led light each room?
6. Which city of your farm located? What is the ambient temperature and humidity range there in summer and winter?
7. Any layout of your farm?
