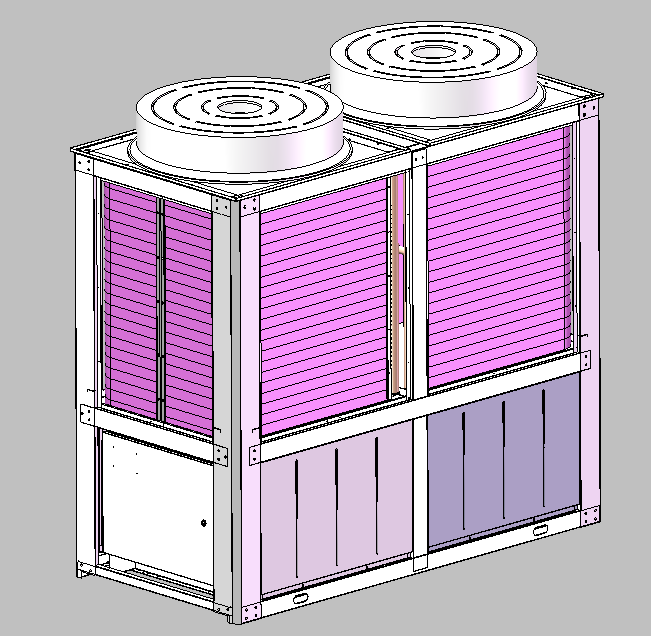

Heat pump unit

Air source heat pump unit

Air Source Heat Pump unit stands as one of the most efficient and environmentally friendly solutions for residential and light commercial climate control. Functioning as an electrically powered, reverse-cycle system, it provides both space heating in the winter and cooling in the summer by transferring heat rather than generating it through combustion. This fundamental difference allows ASHPs to achieve efficiencies of 300% to 400%, meaning they can deliver three to four times more energy than they consume.

Core Operating Principles

At its heart, an Air Source Heat Pump unit operates on a simple thermodynamic principle: even cold air contains thermal energy. The system consists of an outdoor unit (the heat pump itself) and an indoor unit (typically an air handler or a ducted system). These are connected by refrigerant lines.

1. Heating Mode: In cold weather, the outdoor unit’s coil acts as an evaporator. A fan draws ambient air across the coil, which contains a liquid refrigerant. This refrigerant has an extremely low boiling point. As the air passes over it, the refrigerant absorbs the air’s thermal energy and evaporates into a low-pressure gas. This gas is then drawn into a compressor, which pressurizes it, dramatically raising its temperature. The hot, high-pressure gas is sent to the indoor unit, where it passes through a condenser coil. A fan blows indoor air across this hot coil, warming the living space. As the refrigerant releases its heat, it condenses back into a liquid, passes through an expansion valve to lower its pressure and temperature, and returns to the outdoor unit to begin the cycle again.
2. Cooling Mode: In warmer months, the cycle reverses via a four-way reversing valve. The outdoor unit now acts as a condenser, expelling heat to the outside air. The indoor unit becomes the evaporator, absorbing heat and humidity from the indoor air, effectively cooling and dehumidifying the home.

Key Components of the Outdoor Unit

The outdoor unit is a robust, weather-resistant assembly engineered for year-round performance. Its main components include:

· Cabinet: Constructed from galvanized steel with a durable powder-coated finish to resist corrosion, UV radiation, and impact. It is designed to protect internal components from rain, snow, and debris.
· Coil: Usually made of copper tubing with aluminum fins (or all-aluminum microchannel tubing). This large surface area facilitates efficient heat exchange between the refrigerant and the outdoor air.
· Fan: draws air through the coil.optimizing efficiency and minimizing noise.
· Compressor: The “heart” of the system. Modern units almost exclusively use inverter-driven scroll or rotary compressors. Unlike traditional compressors that only run at full capacity (on/off), inverter compressors can modulate their speed to match the exact heating or cooling demand. This results in consistent temperatures, lower electricity bills, and quieter operation.
· Reversing Valve: This component switches the direction of the refrigerant flow, allowing the unit to transition seamlessly between heating and cooling modes.
· Expansion Valve: An electronically controlled valve that meters the exact amount of refrigerant into the evaporator coil based on the current conditions, ensuring optimal performance across a wide temperature range.
· Control Board: The “brain” of the unit, managing all operations, safeties, and communication with the indoor thermostat. It processes data from temperature sensors to optimize the cycle and diagnose faults.

Cold Climate Performance: Early heat pumps struggled in freezing temperatures. New “cold climate” models, equipped with copland compressors , can now provide 100% heating capacity at temperatures as low as -15°C (5°F) and operate efficiently down to -25°C (-13°F).
