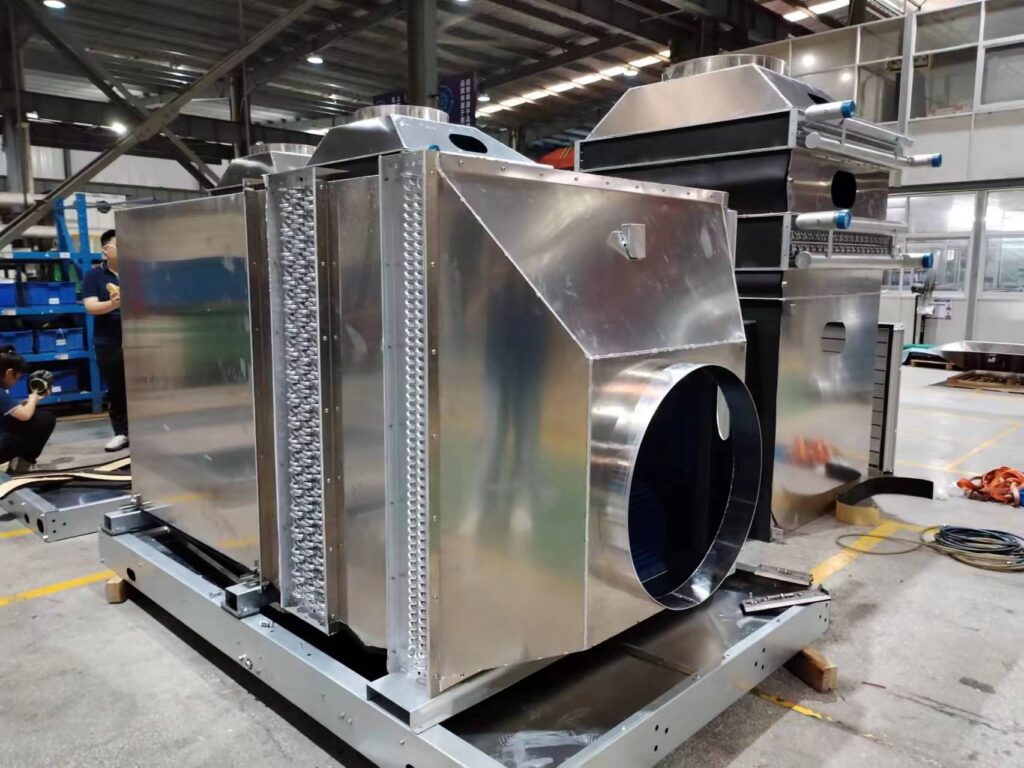

Mushroom air handling unit

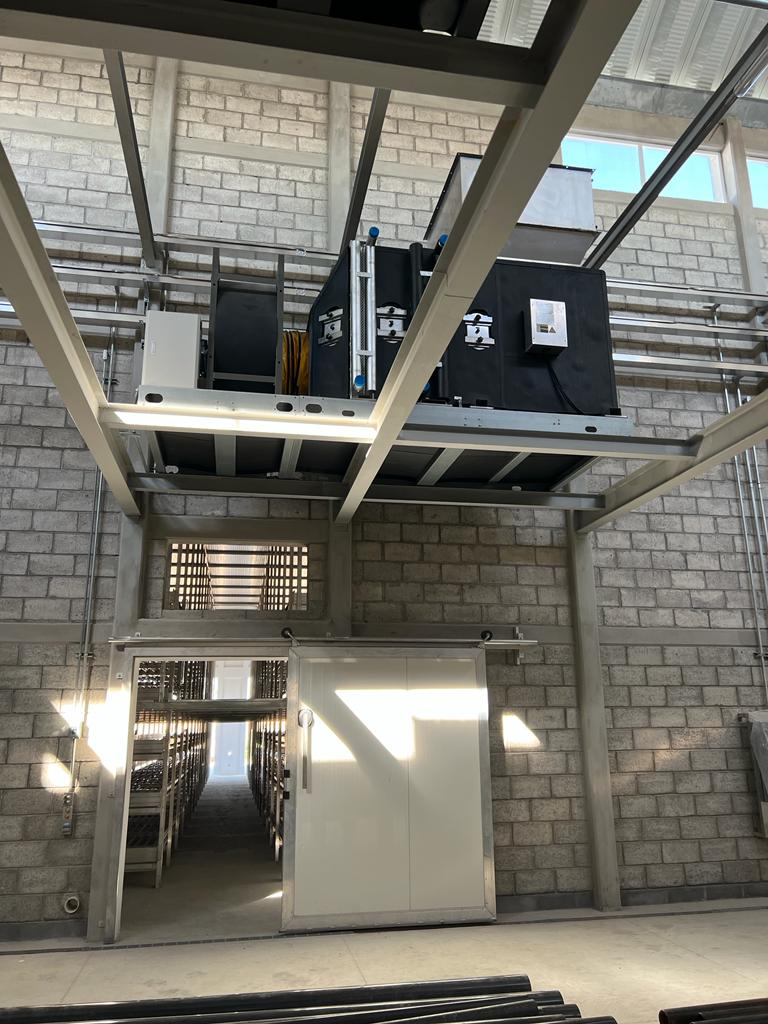

Mushroom Air Handling Unit is used for mushroom growing room climate control system.

Working together with water chiller and boiler for cooling and heating.

The AHU will automatic control growing room temperature, humidity, light, and CO2 level.
The temperature and humidity sensor uses a wet and dry bulb thermometer for air conditioning enthalpy laboratories. The temperature test deviation is less than 0.1°C, and the humidity test deviation is less than 2%.
The unit adopts double coil with four pipe control design. The cold and hot water can be operated independently, which can meet the dehumidification function before cooling, heating and mushroom harvesting in multiple mushroom houses in the transitional season.
The main fan adopts variable frequency fan, the air volume adjustment range is 10%~100%, and the mushroom chamber has been in a breeze circulation state to maintain uniform temperature, humidity andCO2 level in all angles in the mushroom chamber.
The fresh air valve and return valve are all using proportional actuators. The adjustment range is from 0 to 100%. The damper can be adjusted steplessly according to the CO2 level.
The fresh air inlet adopts the early effect + medium effect bag filter to effectively prevent the outside air from infecting the mushroom house.
The unit comes with a filter differential pressure alarm and automatically prompts the customer to clean or replace the filter.
Hot and cold water can be proportional electric valve, according to the temperature PID adjustment.

Model	QSA080	QSA120	QSA180	QSA240
Fan Capacity	8000m3/h	12000m3/h	18000m3/h	24000m3/h
Fan input power	3KW	5.5KW	7.5KW	11KW
Cooling Capacity	115KW	170KW	256KW	343KW
Chilled water temperature	Inlet water temp. 7℃, outlet water temp. 12℃
Heating Capacity	44KW	68KW	137KW	188KW
Hot water temperature	Inlet water temp. 50℃, outlet water temp. 35℃
